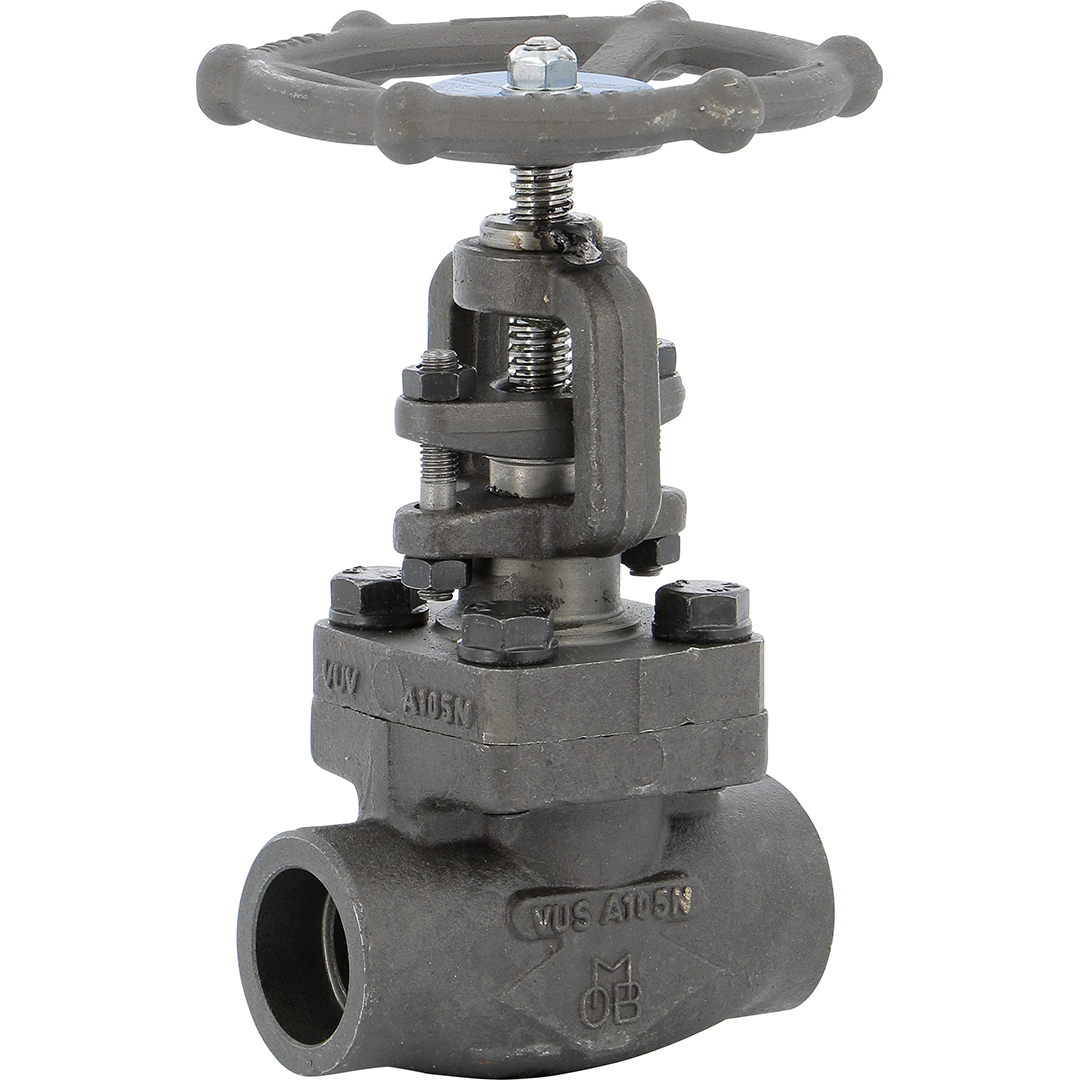

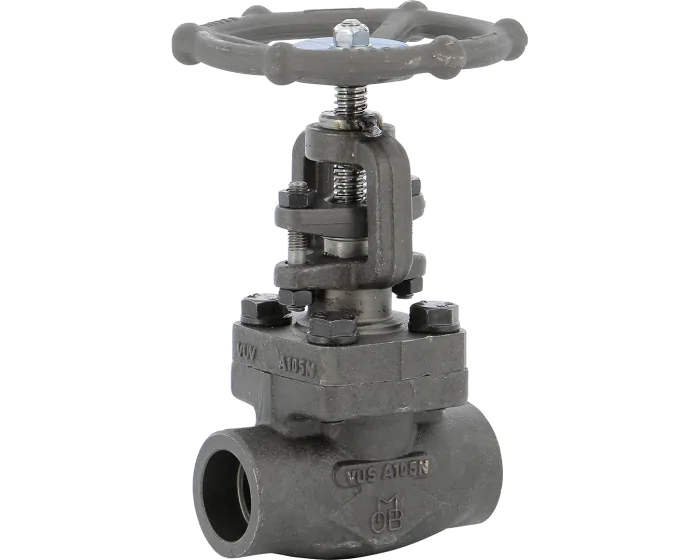

The globe valve series 419 A350 LF2, Class 800, TRIM 12, SW welding, full bore with bolted bonnet, stainless steel rising stem for petroleum, chemical, steam.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A350 LF2 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 12 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 90.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 3.1 |
| Body material | Carbon steel ASTM A350 LF2 |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A479 S31600/S31603 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -46 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A182 F316/316L |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A350 LF2 Full DN15 - 1/2'' | 419015 | S1007484 |
€90.16
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Full DN20 - 3/4'' | 419020 | S1007485 |
€124.34
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Full DN25 - 1'' | 419025 | S1007486 |
€206.50
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Full DN40 - 1''1/2 | 419040 | S1007487 |
€354.23
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Full DN50 - 2'' | 419050 | S1007488 |
€646.29
(excl. btw)
|
add to cart |
